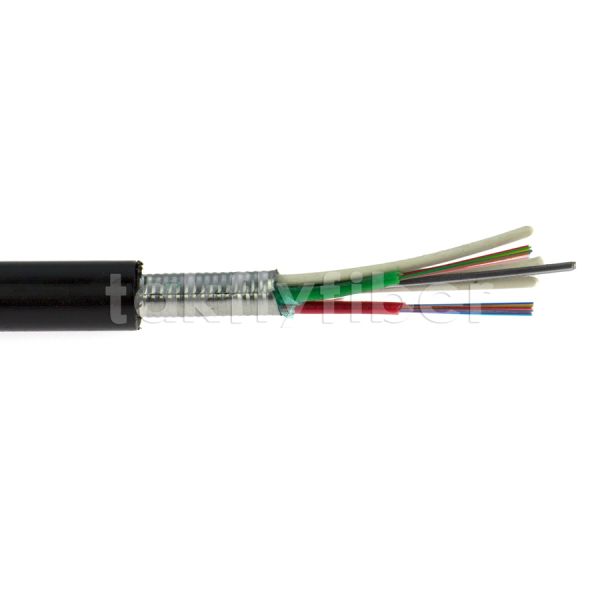

Underground 12 to 144 Cores GYTS Fiber Optic Outdoor Cable , For Duct and Aerial Application
GYTS Fiber Optic Outdoor Cable Description:
GYTS Fiber Optic Cable is the outdoor fiber optic cable type used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 144 cores. A related GYTA type cable is available.
GYTS optical cable generally refers to layer twisted optical cable. The layer twisted optical cable is composed of a plurality of casings containing optical fibers twisted into a round cable core around the central reinforcing member. The metal or non-metallic reinforcement is located in the center of the optical cable, and the loose tube containing the optical fiber is arranged around the reinforcement.
S
GYTS Outdoor Fiber Optic Cable Characteristic
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Specially designed compact structure is good at preventing loose tubes from shrinking
- PE sheath protects cable from ultraviolet radiation
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
GYTS Outdoor Fiber Optic Cable Application:
- Adopted to outdoor distribution
- Suitable for aerial, pipeline laying method
- Long distance and local area network communication
Fiber Charateristic:
| | G.652.D | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.5 dB/km | ≤3.5 dB/km |
| @1300nm | | | ≤1.5 dB/km | ≤1.5 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
GYTS Outdoor Fiber Optic Cable Technical Data:
| Item | Contents | Value |
| Loose tube | material | PBT/PP |
| diameter | Ф2.0mm |
| Central strength member | material | Steel wire/Steel wire with PE cover |
| diameter | Ф1.4~2.0mm |
| Outer sheath | material | MDPE/HDPE |
| Thickness | 1.7mm |
GYTS Outdoor Fiber Optic Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (Kg/km) | Max.Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
| Long/Short Term | Long/Short Term | Dynamic | Static |
| GYTS-2~60 | 9.5 | 115 | 600/1500 | 300/1000 | 20D | 10D | -20~+70 |
| GYTS-62~72 | 10.5 | 130 | 1000/3000 |
| GYTS-74~96 | 12.0 | 160 |
| GYTS-98~120 | 14.0 | 220 |
| GYTS-122~144 | 16.0 | 280 |
